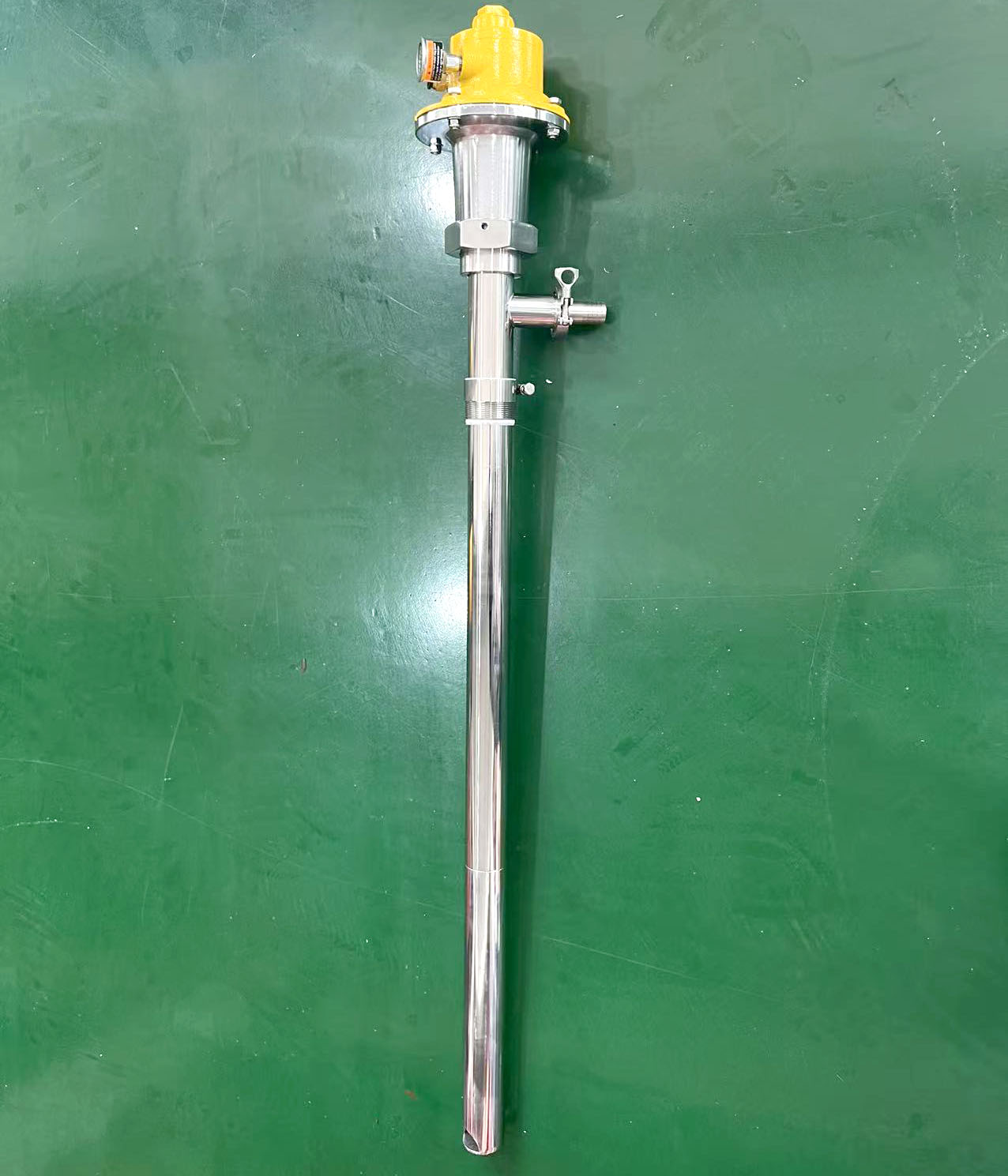

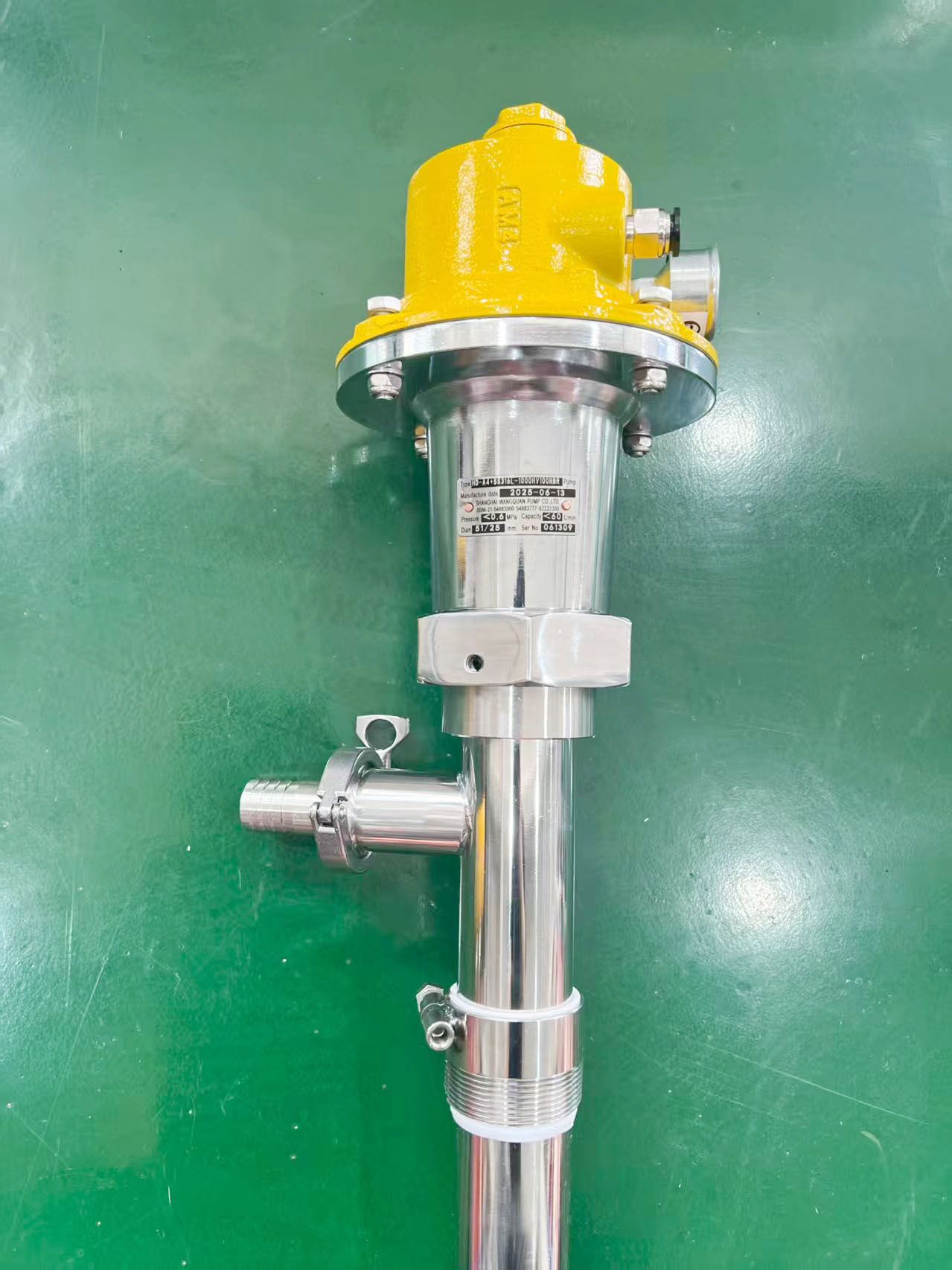

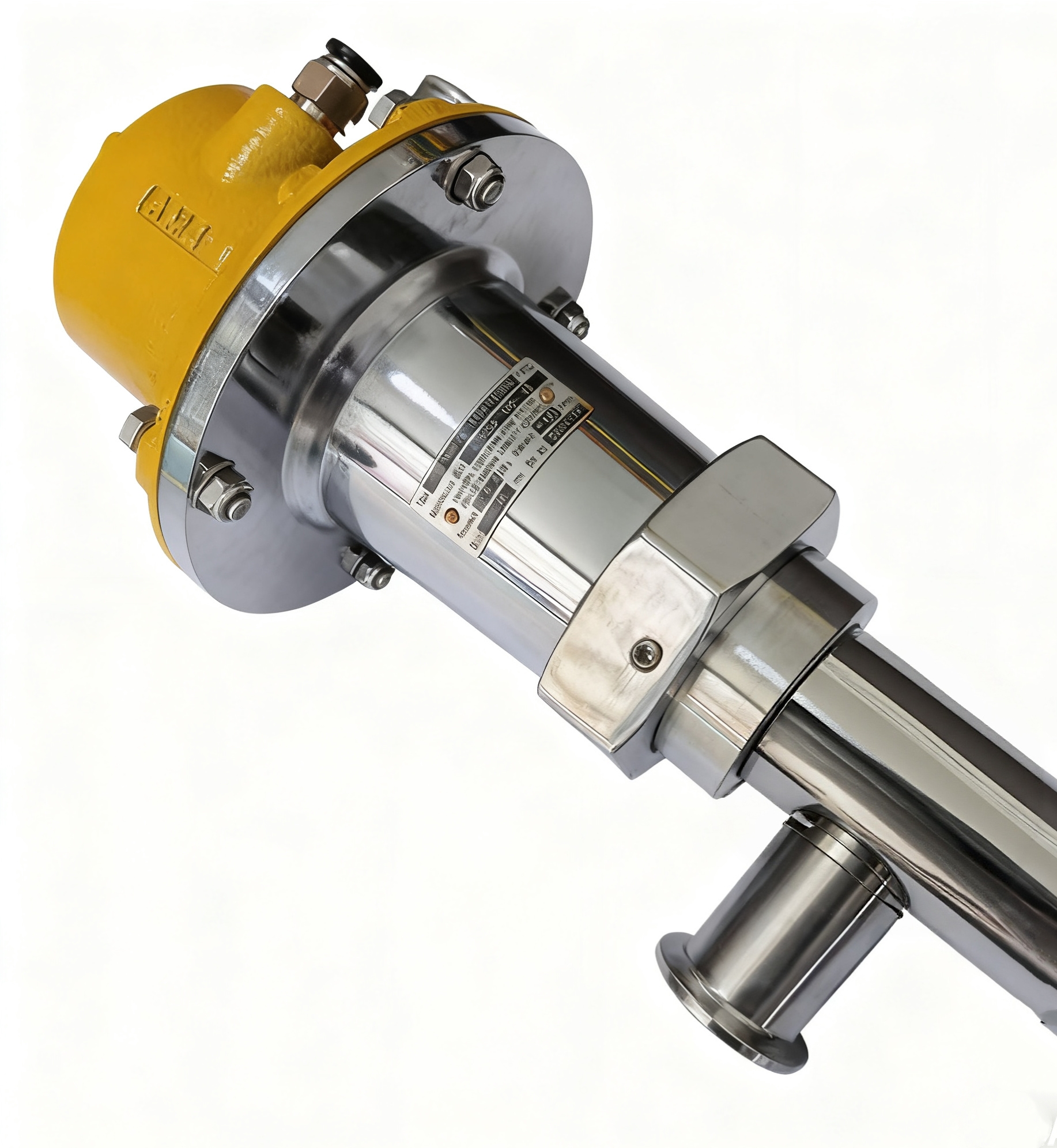

HD-A4+SS316L-1000HV-1000 High-Viscosity Pneumatic Drum Pump

1.Introduction to High-Viscosity Pneumatic Bucket Pump

The pneumatic screw bucket pump is a bucket pump product developed by our company, which is at the advanced domestic level. It adopts a screw stator

 and rotor extrusion design and is specifically designed for extracting high-viscosity products such as epoxy resin, glycerin, honey, printing ink, fruit juice,

gear oil, grease, paint, tomato pulp, and shampoo. The product adopts a quick-installation design, which is convenient for disassembly and cleaning.

 It features a simple structure and easy maintenance. The output liquid pressure is high, the flow rate is stable without pulses, and the wear is minimal

when conveying abrasive particles. Conventional gas source is used and the flow rate can be adjusted. It is suitable for flammable, explosive or places

without power supply. It is currently the most ideal choice for extracting high-viscosity materials in the market.

2. Product Application:

The HD-HV series screw cartridge pumps can transport media such as acids, alkalis, salts, oils, and beverages, and are used in departments such as chemical

 engineering, petrochemicals, fine chemicals, dye chemicals, environmental protection, water treatment, medicine, and food. Designed for the conveying of

coating slurry in the leather industry and other industrial sectors, it features corrosion resistance, anti-sedimentation, energy conservation and other functions.

3. Characteristics

◇ Pump pipe material :SUS316L ◇ Immersion length :1000/1200 mm

◇ Rotor material :SUS316L ◇ Applicable temperature :100°C

◇ Stator material: Rubber/PTFE ◇ Pump tube diameter :51MM

◇ Central axis :SUS316 ◇ Outlet diameter :25/32MM

◇ Motor power :1300W/3000W

4. Usage Method

(1) First, correctly place the material guide pipe into the material bucket to be conveyed

(2) Connect the corrosion-resistant hose to the discharge port and link it to the feeding location.

(3) Turn on the power and adjust the rotational speed according to the required slurry flow rate, and it can start working.

5. Maintenance and care

(1) During use, prevent the cylinder body from being hit to avoid deformation and screw jamming, which could lead to scrapping

(2) If not in use for a long time, it should be cleaned in a solvent to prevent the slurry from freezing and blocking the rubber stator and the feeding pipe.
